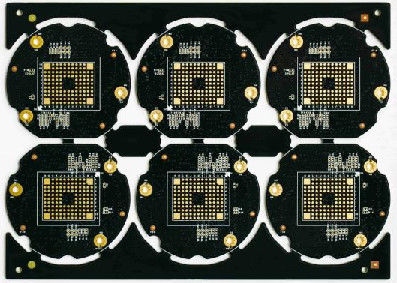

8L HDI PCB 0.08mm Lind Width And Space With BGA Design And Impedance Control
  • 8L HDI PCB 0.08mm Lind Width And Space With BGA Design And Impedance Control

8L HDI PCB 0.08mm Lind Width And Space With BGA Design And Impedance Control

Place of Origin China
Sertifikasi ISO9001, TS16949
Rincian Produk
Jenis papan:
8L FR4 TG150 1.6mm
Cu Thickness:
1OZ
Perbaikan permukaan:
Perendaman Emas
Testing:
AOI Test
Jenis Layanan:
Prototipe PCB/ Produksi Massal
Special technolgy:
BGA, impendance control
Ketentuan Pembayaran & Pengiriman
Minimum Order Quantity
1PNL
Harga
Dapat dinegosiasikan
Packaging Details
Vacuum package
Delivery Time
5-10 days
Payment Terms
T/T
Deskripsi Produk

Applications:

HDI printed circuit boards, also known as high-density interconnect PCBs, are versatile and high-performance circuit boards that are suitable for a wide range of applications across various industries. These advanced PCBs are known for their high circuit density, fine lines, and tight spaces, making them ideal for applications that require high precision and reliability.

Originating from China, HDI PCBs are a popular choice for many electronics manufacturers due to their excellent performance and cost-effectiveness. They are commonly used in applications where space is limited, such as smartphones, tablets, laptops, and other portable electronic devices.

With the ability to support both SMT (Surface Mount Technology) and thru-hole assembly processes, HDI PCBs offer flexibility in component placement and can accommodate a wide range of electronic components. This makes them suitable for complex electronic devices that require a mix of component types and sizes.

These PCBs are available in various base materials including FR4, ROGERS, Aluminum, High TG, providing manufacturers with options to meet specific performance requirements. The green solder mask used in HDI PCBs not only offers protection against environmental factors but also enhances the aesthetics of the board.

For quality assurance, HDI PCBs undergo AOI (Automated Optical Inspection) testing to ensure that each board meets the required specifications and standards. This testing process helps identify any potential defects or issues early on, ensuring the reliability and functionality of the final product.

As a service-oriented product, HDI PCBs are commonly used for PCB prototype development, allowing manufacturers to quickly test and iterate their designs before full-scale production. This service type enables faster time-to-market and reduces overall development costs, making it an ideal choice for companies looking to innovate and stay competitive in the electronics industry.



Packing and Shipping:

Product Packaging for HDI PCB:

The HDI PCBs will be carefully packaged in anti-static bags to prevent any damage during transportation. They will then be placed in sturdy cardboard boxes with ample padding to ensure safe delivery.

Shipping Information:

Our standard shipping method for HDI PCB products is through reputable courier services such as DHL or FedEx. Customers can also request for alternative shipping methods if needed. Tracking information will be provided once the order has been dispatched.
